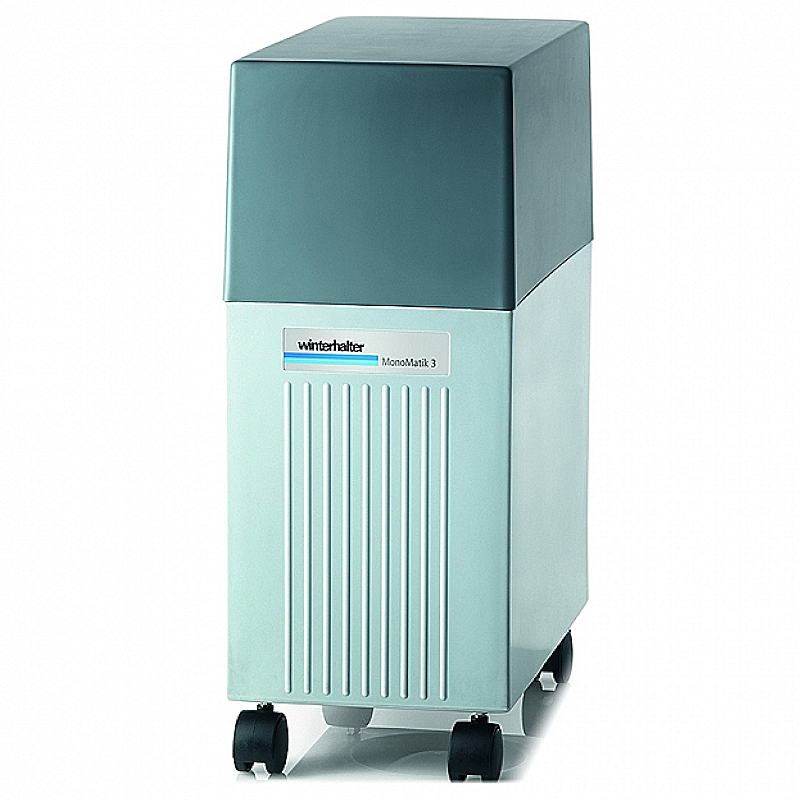

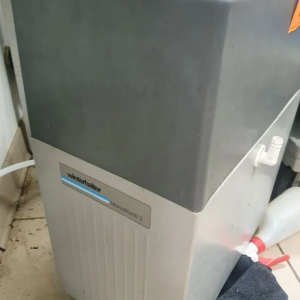

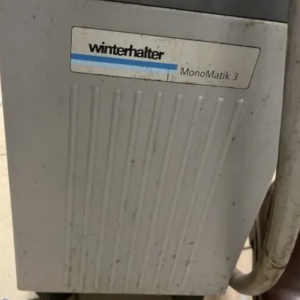

Winterhalter MonoMatik 3 Water Softener 2017

• Water Inlet Temperature: Up to 50°C
• Dynamic Pressure Range: 1.5 to 6 bars
• Volumetric Regeneration: The regeneration starts based on water flow and only occurs once the set amount of water has been consumed.
• Regeneration Time: Limited to 10 minutes (compared to 30 minutes in other models).
• Water Hardness Adjustment: Easy to adjust with a rotary knob.
• Optimized Water and Salt Consumption: Reduced consumption based on the regeneration process.
• Dimensions: L. 260 x W. 505 x H. 575 mm (+110 mm for water inlet height).

Advantages of the MonoMatik 3

• Replacement for the MonoMatik 1x4: Designed for improved efficiency.
• No Electrical Connection Required: Simple installation process.
• Flexible Regeneration Phase Adjustment: Tailor the regeneration frequency according to use.
• Water and Salt Savings: Achieved through faster, more precise regeneration.

Technical Specifications

• Max Flow Rate: 20 L/min
• Max Raw Water Hardness: 52 TH° (total hardness degree)
• Water Pressure: Min 1.5 bar / Max 8 bar
• Salt Tank and PVC Cover: Fiberglass structure for the tank.

The MonoMatik 3 is a highly efficient and cost-effective water softener, ideal for professional environments looking to reduce operational costs. For more detailed specifications and installation information, specialized resources can be consulted
