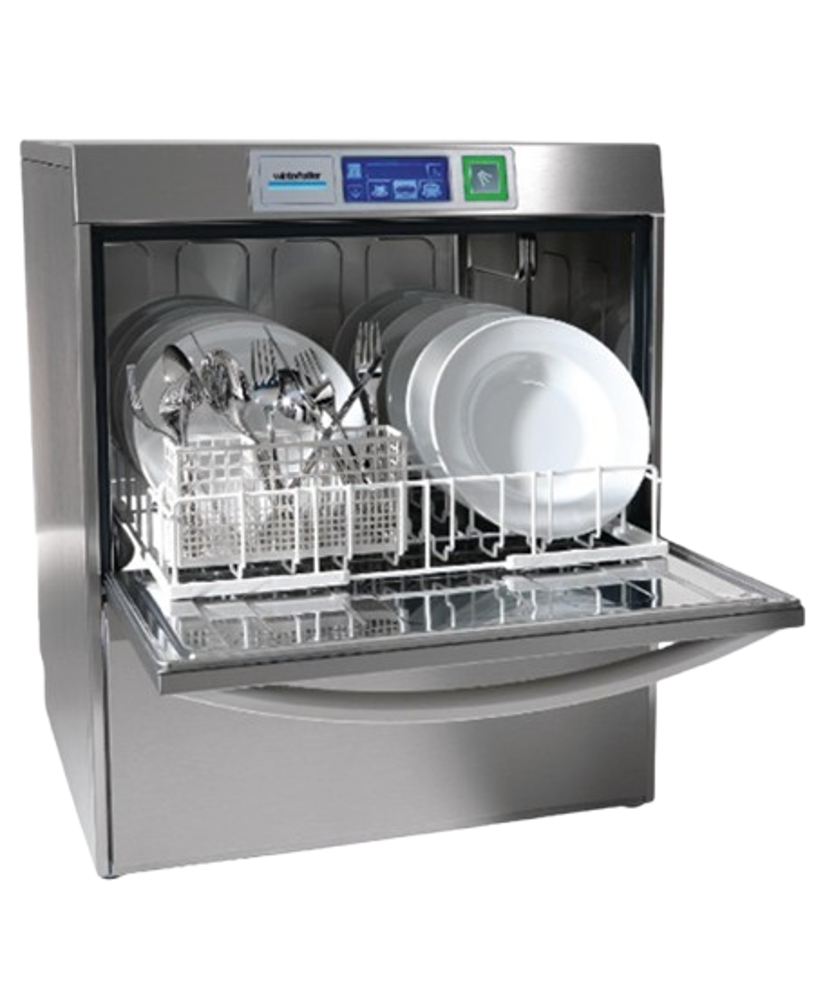

Winterhalter UC-M – Professional Dishwasher

The UC-M series can be adapted for four basic versions depending on usage: glass washer, dishwasher, bistro, and cutlery washer.
The unit operates with a single color-coded button, which includes a status indicator and shows cycle progress on the display.

The Winterhalter smart touch-display offers three washing programs (only one for the cutlery washer), with intuitive, multilingual symbols, ensuring simple, error-free operation and customizable cycle programming.
Many special programs are available: intensive, energy-saving, low-noise, or short.

Technical innovations provide exceptional washing results while maintaining optimal energy efficiency.

Key Features

• Robust full-color touch display

• Integrated WLAN function

• USB interface for software updates

• VarioPower system: S-shaped wash field for maximum coverage, optimized jets, and adjustable water pressure

• Removable quick-release wash fields

• Tank water exchange program

• Descaling program

• Integrated detergent and rinse aid dosing with built-in tanks

• Quadruple filtration system with clouding sensor

• Deep-drawn tank with hygienic heater

• Embossed rack guides

• Guided cleaning program

• Thermostop for hygienic safety

• Hygiene logbook with data memory

• Non-pressurized boiler

• Drain pump

• Plastic or stainless steel rear cover (depending on version)

• Door safety and vent position

• Detailed error display with code and text

• Programmable automatic start and shutdown

• Chef and technician levels protected by PIN

• Temperature display (tank and boiler)

• Display of operating data

• Data logger and direct contact with chemical suppliers and service

• Soft start of the wash pump

• Under-counter or freestanding installation

Benefits

• Best wash results

• Low operating costs

• Easy and intuitive operation

• Energy efficiency

• Short cycles

• Simplified maintenance and service

Available Options

• CONNECTED WASH (free app): monitoring of operating data*

• Energy air-circulation heat recovery system (85 mm higher, saves up to 0.1 kWh per cycle)**

• Cool model (cold rinse for delicate glasses)

• Suction tubes with level control

• Integrated water softener (up to 31 °gTH)

• Variety of racks and plinths

• Double-rack system

• Excellence-i: built-in reverse osmosis (up to 35 °gTH)

• Excellence-iPlus: reverse osmosis + upstream integrated water softener (up to 31 °gTH)

• Data interface according to DIN 18875 for EMS***

• Stainless steel rear cover

• PAY PER WASH – fixed price per cycle*

• LAN function (kit available)

*Not available in all markets
**Cold water only
***Risk to cycle times and temperatures if connected to an external EMS

Technical Data

Theoretical capacity:

• Glass washer: 77 / 48 / 32 / 22 racks/h

• Dishwasher: 66 / 40 / 28 / 24 racks/h

• Bistro: 66 / 40 / 32 / 28 racks/h

• Cutlery washer: 21 / 11 racks/h

Water consumption:

• Glass washer, dishwasher, bistro: from 2.0 L per rack

• Cutlery washer: from 3.1 L per rack

Dimensions:

• Width x Depth: 600 x 603 mm

• Standard height: 725 – 760 mm

• Height with heat recovery: 810 – 845 mm

• Height Excellence-i / iPlus: 820 – 855 mm

• Depth with door open: 940 mm

• Rack dimensions: 500 x 500 mm

• Clear entry height: 309 mm

Water connection:

• G ¾”

• Pressure: 1.0 – 6.0 bar (Energy: 1.5 – 6.0 bar; Excellence-i / iPlus: 1.4 – 6.0 bar)

• Flow rate: minimum 4 L/min (Energy: 3 L/min)

• Max temperature: standard 60 °C, Energy & Cool 20 °C, Excellence-i / iPlus 35 °C

General:

• Weight: Standard 64 / 74 kg, Energy 70 / 80 kg, Excellence-i / iPlus 85 / 95 kg

• Tank capacity: 15.3 L

• Circulation pump: 150 – 200 L/min

• Noise level: max. 55 dB(A)

• Splash protection: IPX3 (plastic rear), IPX5 (stainless steel rear)

• Display impact resistance: IK07

Cycle times:

• Glass washer: 47 – 163 s

• Dishwasher: 54 – 150 s

• Bistro: 54 – 128 s

• Cutlery washer: 171 – 327 s

Certifications: CB, SVGW, WRAS
